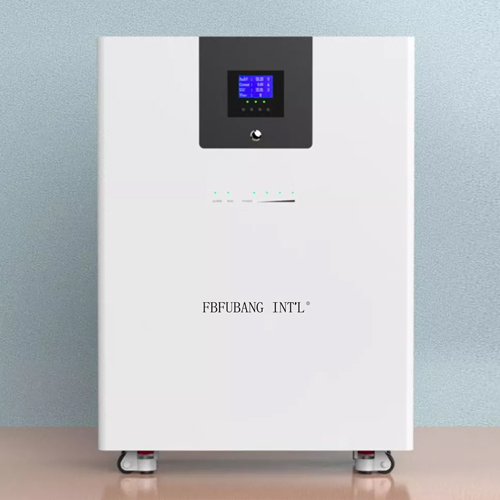

Stackable Home Energy Storage System

10KWH

Download PDF >>

All-In-One Stackable Home Energy Storage System

Single-Phase /Split- Phase /Three-Phase

Product CodePB02-200AH
Code ImgPB02-200AH.jpg
Performance parameters
Phase NumberSpecification
Output Power3KW-5KW Optional
Rated voltage51.2V
Rated Capacity200AH
Continuous Discharge Current100A
Peak Discharge Current110A/10S
Standard Charging Current50A
Fast Charge Current100A
Number Of Expandable Batteries2~15
Optional Capacity Range10.24~76.8KWH
Cooling MethodSelf-Cooling
Battery TypeLithium Iron Phosphate
Use Period>15 Years@25°C
Cycle Life=6000 times
Rated Grid Frequency50HZ/60HZ Auto Detect
Grid Voltage Range230V(170Vac~280Vac)+2% 110V(90Vac-280Vac)+2%
PV maximum Input Power4200W
MPPT Voltage Range60-115Vdc
The charging and discharging efficiency
      of the whole machine		>92%
Battery Voltage Range40.0Vdc~60Vdc:0.6Vdc(under   voltage alarm
      / shutdown voltage / over voltage alarm /
       over voltage recovery... LCD screen can be set)
WarrantyBattery (5 years) Inverter (1 year)
Compatible parameters
Battery CertificationCE, UN38.3, MSDS, Shipping, Dangerous Package
Mechanical parameters
Inverter Size/Weight420*180*550mm/19KG
Battery Size/Weight420*180*510mm/50KG(single layer
Chassis Size/Weight420*180*30mm/2KG
Installation MethodStacked
Environmental parameters
Storage Humidity RangeS85%RH
Charge/ Discharge Temp. 0℃ to 45 ℃ (32F to 113F)/ -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temp.0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
WaterproofIP21
