Download PDF >> All-In-One Built In Inverter Solar Energy Storage System
Stacakble Power Supply Series Can Be Used With A Multi - Frequency Inverter To Form A "Photovoltaic" Energy Storage System.
| Product Code | 10KWH | 15KWH | 20KWH | 25KWH |
| Code Img |  |  |  |  |
| Performance parameters | ||||
| Phase number | Single-Phase | |||
| Output power | 5KW/6KW/ 8KW/ 10KW/ 12KW Optiona | |||
| Rated voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Rated capacity | 200Ah | 300Ah | 400Ah | 500Ah |
| Continuous discharge current | 100A | 100A | 100A | 100A |
| Peak discharge current | 110A/10S | 110A/10S | 110A/10S | 110A/10S |
| Standard charging current | 50A | 50A | 50A | 50A |
| Fast charge current | 100A | 100A | 100A | 100A |

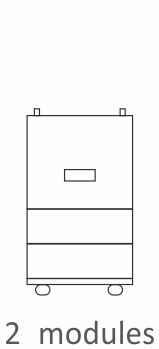

| Number of expandable batteries | 2~15 | 3~15 | 4~15 | 5~15 |
| Optional capacity range | 10.24~76.8KWH | 15.36~76.8KWH | 20.48~76.8KWH | 25.6~76.8KWH |
| Cooling method | Self-Cooling | |||
| Battery type | Lithium Iron Phosphate | |||
| Design lifespan | ＞15Years@25℃ | |||
| Cycle life | ≥6000cycles DOD 85% | |||
| Rated grid frequency | 50Hz/60Hz Auto Detect | |||
| Grid voltage range | 104V-110V-U5V-120Vac, 208V-220V-230V-240Vac) ±10% RMS | |||
| PV Maximum input power | 5000W | |||
| MPPT voltage range | 60-115VDC | |||
| Charging and discharging efficiency | >98% | |||
| Battery voltage range | Default@load<20%: 42.0V;@20%<load<50%:40.8V; @load.50%: 38.4V (Based on program 21,40Vdc-48Vdc settable) | |||
| Compatible parameters | ||||
| Warranty | Battery (5 years), Inverter (2 year) | |||
| Battery certification | CE,UN38.3, MSDS, Dangerous Package Shipping Doc. | |||
| Mechanical parameters | ||||
| Cell certification | CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3 | |||
| Inverter size/weight | 602*403*650mm/76KG / 602*403*650mm/76KG / 602*403*650mm/76KG / 602*403*650mm/76KG | |||
| Battery size/weight | L602*W403*H200mm/55KG(single layer) | |||
| Chassis size/weight | 602*403*124mm/12KG | |||
| Installation method | Stacked | |||
| Environmental parameters | ||||
| Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | |||
| Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||
| Waterproof | IP21 | |||
