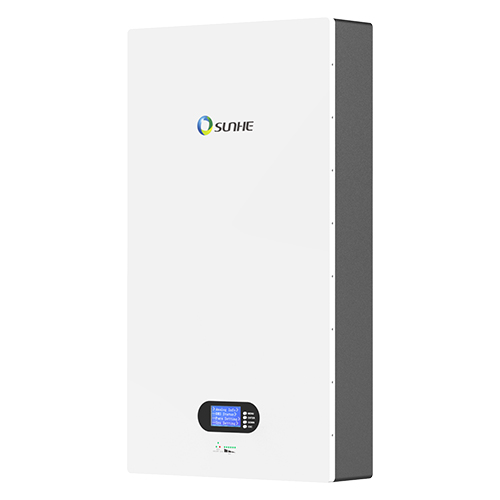

Wall Mounting Lithium Battery

LiFePO4 51.2V 200Ah

Download PDF >>

48V 100Ah Solar Power Wall Battery Energy Storage System

Home Battery Backup/Powerwall Solar Battery

Product CodePW04-100AHPW04-200AH
Code Img图标5.png图标10.png
Performance parameters
Nominal Voltage51.2V51.2V
Nominal Capacity100Ah200Ah
Energy51.2kWh10.24kWh
Internal Resistance≤50mQ
Cycle Life>6000 cycles
Months Self Discharge<3%
Efficiency of Charge100% @0.2C
Efficiency of Discharge96~99% @1C
Standard Charge
Charge Voltage54V
Charge Mode0.2C to 58.4V, then 58.4,charge current 0.02C(CC/CV)
Charge Current50A50A
Discharge Current100A100A
Charge Cut-off Voltage58.4V±0.2V
Standard Discharge
Continuous Current100A100A
Max. Pulse Current100A200A
Discharge Cut-off Voltage40V
Environmental
Charge Temperature0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature-20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Water Dust ResistantIP54IP51
Mechanical
Cell & Method3.2V-100AH-16S1P
Dimensions (in./mm.)550*492*145mm880*492*145mm
Weight (lbs./kg.)52kg80kg
Terminal100A through terminal
Protocol (optional)RS485/RS232/CAN
Support Inverter BrandsGoodwe , Growatt , Victron , LXP , Sofar , Deye , Sarmatec , SREN          TBBSMAJinlang,Wheatfield, Riyueyuan, Suzhou Jiaxun Natong
